ACAR-B2
ACAR

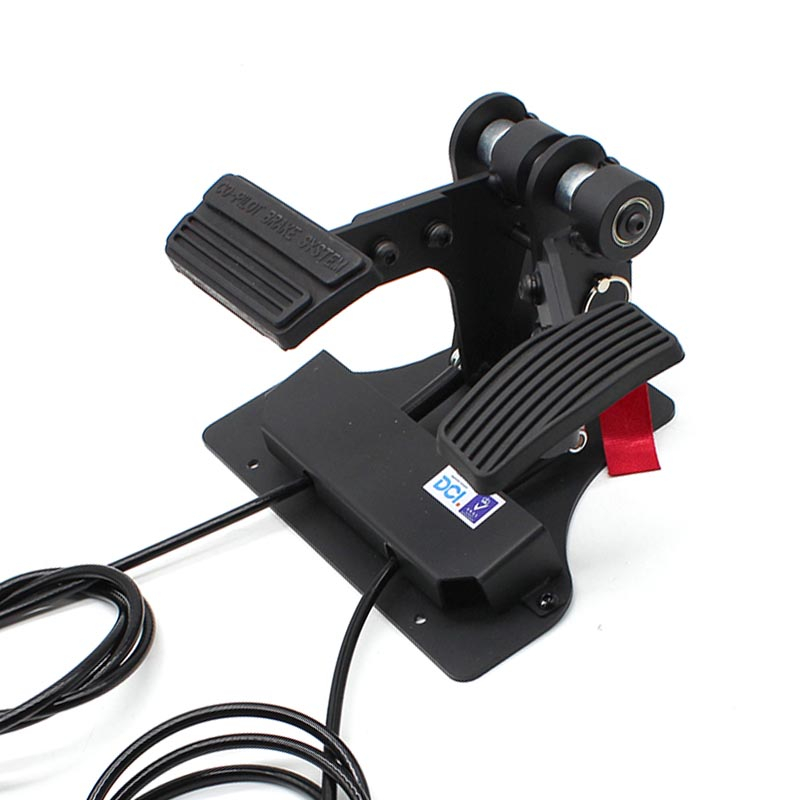

The ACAR-B2 Heavy-Duty Co-Pilot Brake is a robust safety solution designed for commercial and passenger vehicles, providing secondary braking control for instructors, fleet supervisors, and adaptive drivers. Engineered with a reinforced steel frame and industrial-grade hydraulic cylinder, this brake system offers precise stopping power with a 30% shorter response time than manual systems, ensuring safety in high-stakes driving scenarios. The adjustable pedal ratio (1:1.5 to 1:2.0) and universal mounting bracket make it suitable for trucks, buses, and driving schools.
Industrial-Grade Performance
Dual-Circuit Hydraulics: 25mm bore cylinder generates 800N braking force, compatible with OEM brake systems (ABS/ESC compatible).
Adjustable Pedal Ratio: Mechanical linkage allows 20% customization of brake sensitivity, ideal for varying vehicle weights (1-5 tons GVW).
Universal Vehicle Integration
Multi-Mount Bracket: Fits 90% of commercial vehicles (trucks, buses, vans) with 76-102mm pedal spacing, adjustable via 4-axis mounting plate.
Plug-&-Play Hydraulics: Pre-bled brake lines with ISO 4414 connectors, reducing installation time to 60 minutes for certified technicians.
Safety & Compliance
Emergency Stop Capability: Meets FMVSS 135 braking standards, providing 50% of primary brake force for emergency interventions.
Wear-Resistant Components: Ceramic-coated piston (10,000-hour lifespan) and stainless steel braided hoses (burst pressure: 3000 PSI), minimizing maintenance.
Ergonomic Design
Dual-Pedal Operation: Separate brake and clutch controls (for manual transmissions), with anti-slip rubber pads (coefficient of friction: 0.85μ).
Foldable Pedal Arm: Collapses 90° for driver access, ideal for narrow cab interiors in buses and RVs.
Commercial Fleets:
Trucking Companies: Enables fleet supervisors to intervene in unsafe driving situations during training or cargo transport.
Bus Services: Essential for driver training in public transit, ensuring passenger safety during instructor-led sessions.
Adaptive Driving:
Handicap Vehicles: Provides secondary braking for drivers with lower limb impairments, compliant with EN 16890 adaptive equipment standards.
Driving Education:
Driving Schools: Standardizes co-pilot braking across diverse vehicle models (cars, trucks, SUVs), improving trainee safety.
Q: Can the ACAR-B2 be installed in a left-hand drive vehicle?
A: Yes, the symmetric design works for both LHD and RHD vehicles—adjust the mounting bracket for pedal alignment.
Q: What is the maintenance interval?
A: Annual brake fluid flush and piston inspection recommended—hydraulic fluid (DOT 4) included in the installation kit.
Q: Does it interfere with the driver’s primary brake?
A: No, the secondary system operates independently, with a check valve preventing pressure interference with the main brake circuit.
Q: Is it compatible with automatic transmissions?
A: Yes, the system works with both manual and automatic transmissions—clutch pedal is optional for manual gearboxes.
Model: ACAR-B2
Dimensions (Carton): Approximately 320 x 180 x 270 mm
Net Weight: 4.50 kg
Gross Weight: 5.20 kg
Material: High-grade steel and durable composite materials
Color Options: Black / Chrome
Compatibility: Universally designed for a wide range of vehicles
